*Create

There are three ways to create a Bluetooth gateway:

• Created by the APP
• Manual creation
• Import via template

Created by the APP

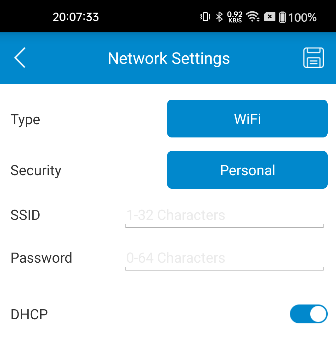

First of all, it is necessary to configure the gateway to access the network through the APP

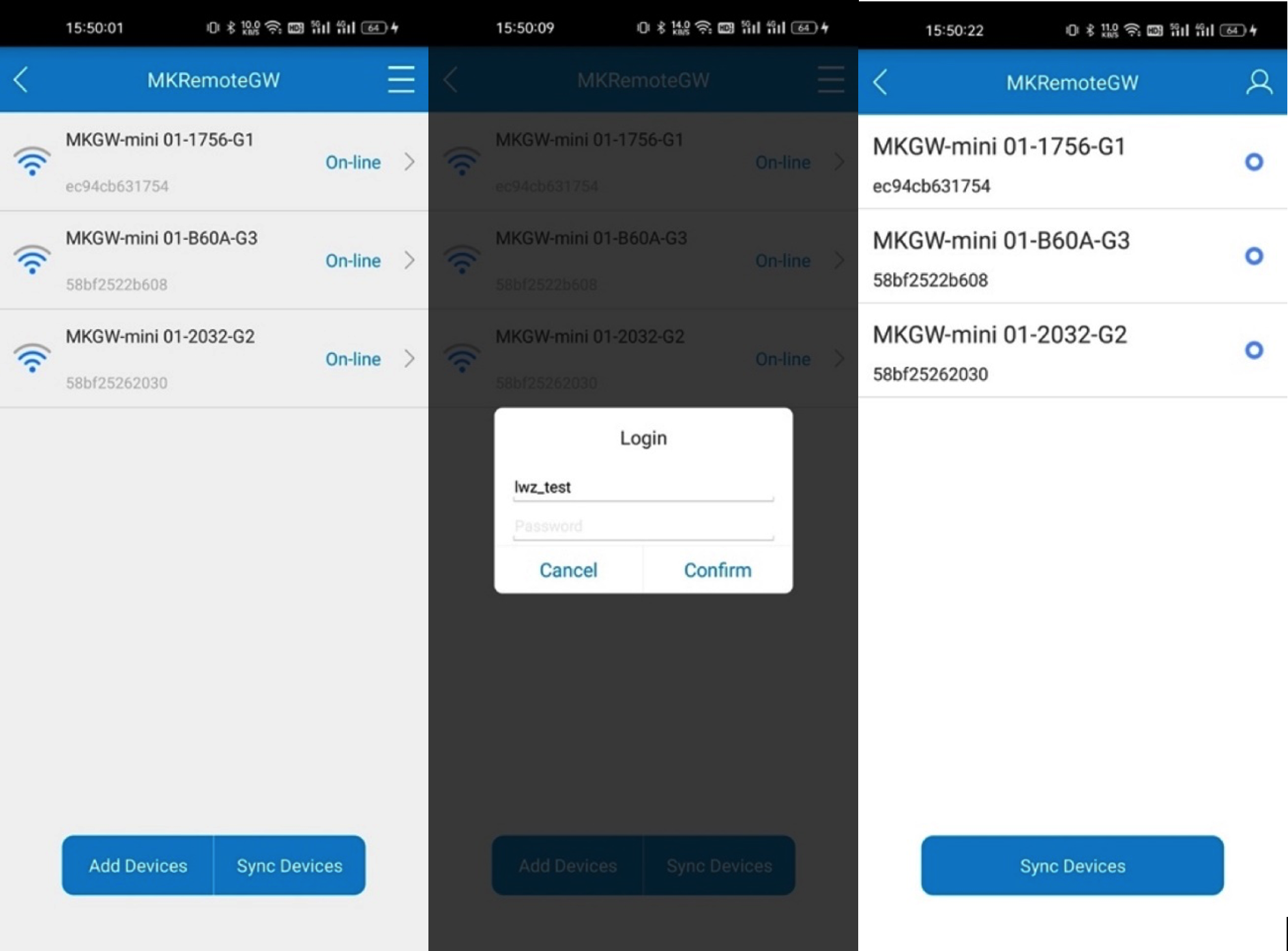

After successful network access, it will show that the gateway is online. On the home page, click “Sync Devices”, enter the registered username and password, select “env_cloud”, log in and select the device to be synchronized.

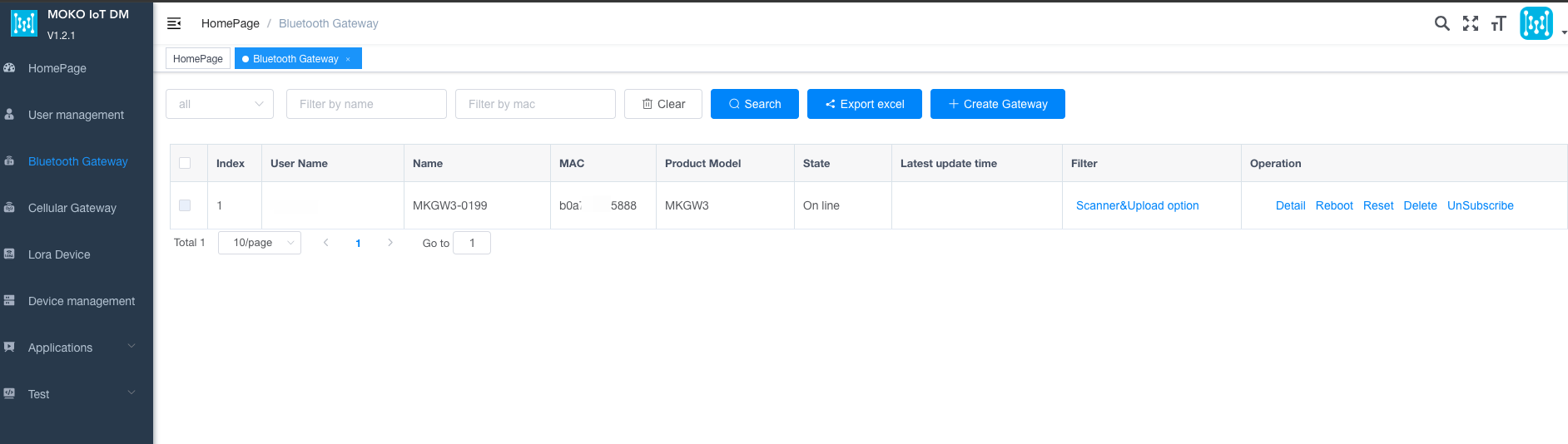

After successful synchronization, click the “Search” button to refresh. You will see that the device has been created successfully. Click the “Subscribe” button, and the platform will start to receive the data upload by the gateway.

Manual creation

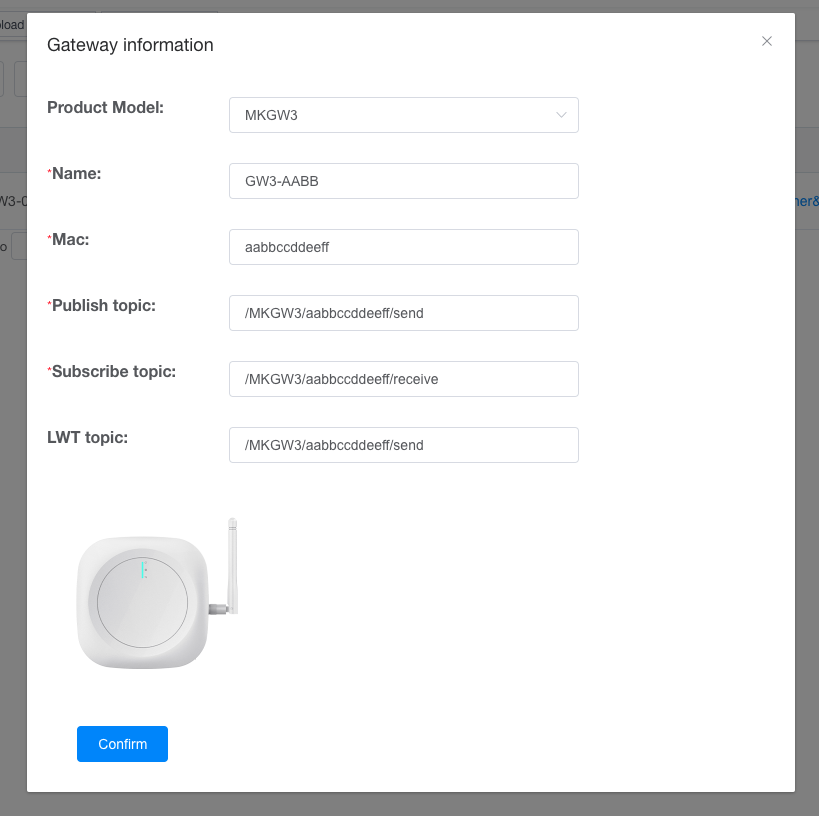

To manually create a device, you need to select the correct device model, fill in the WiFi MAC address (note to use lowercase), and the publish/subscribe subject of the gateway (which should be consistent with the one filled in during the APP configuration).

An example is as follows:

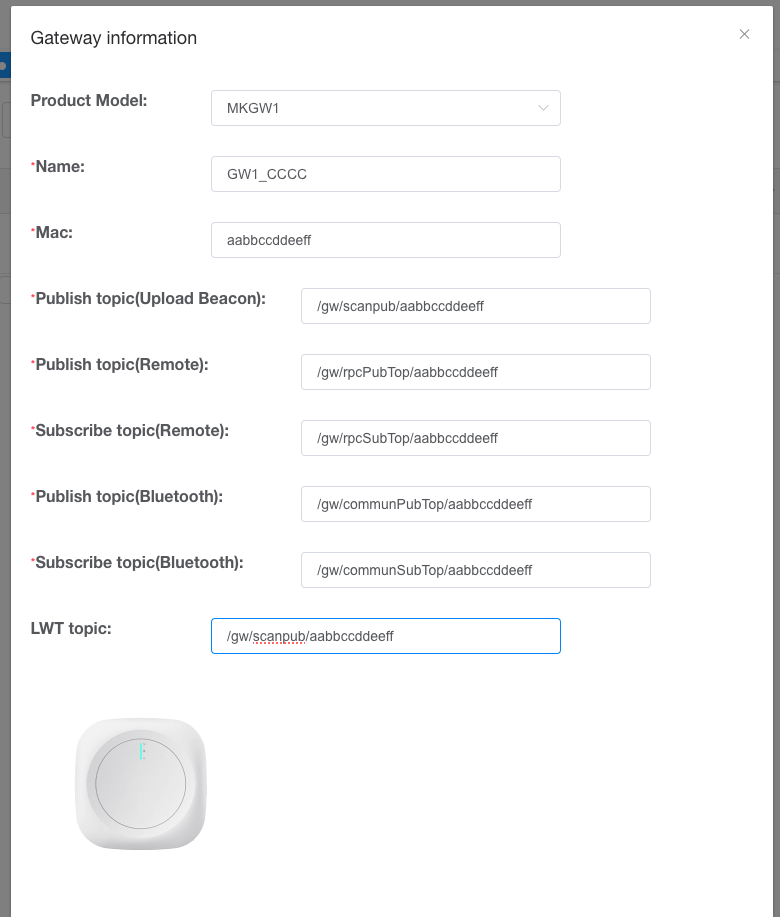

Note that MKGW1 only supports manual creation.

An example is as follows:

Import via template

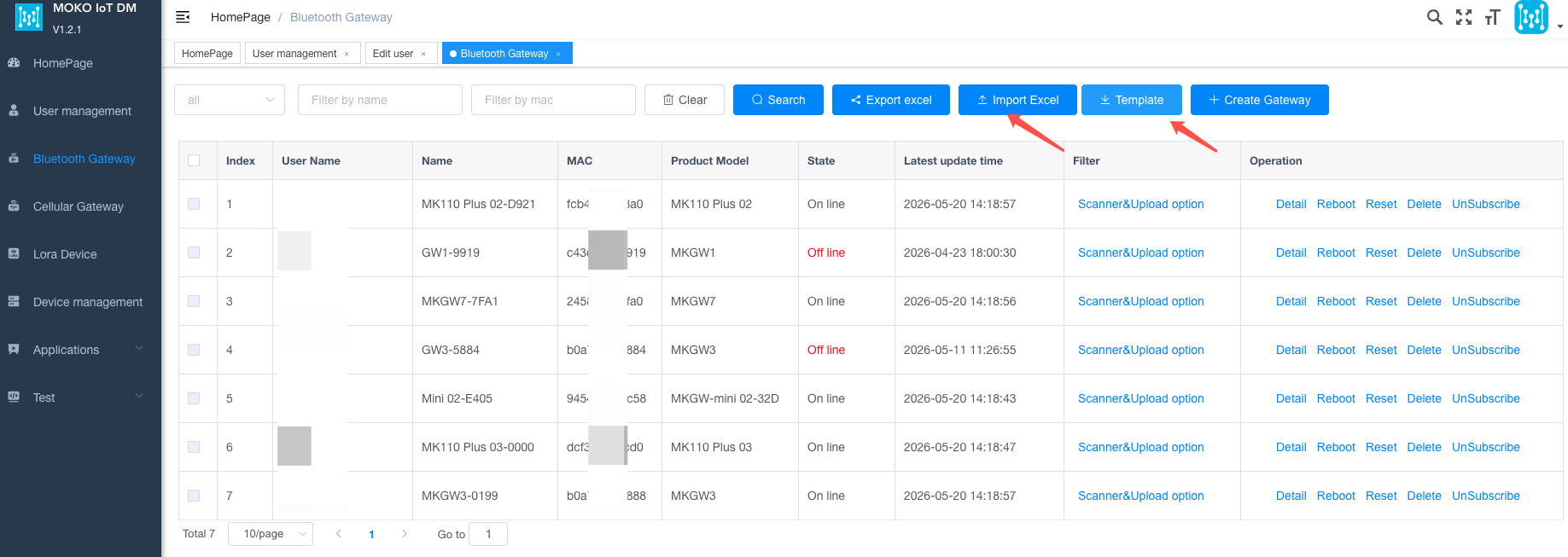

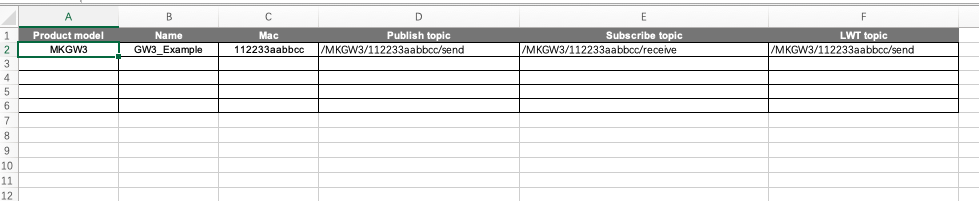

On the list page, click the “Template” button to download the template file for import. Enter the device information and click “Import Excel” to complete the import process.

An example is as follows:
